Filter & Regulator Lubricator(FRL)

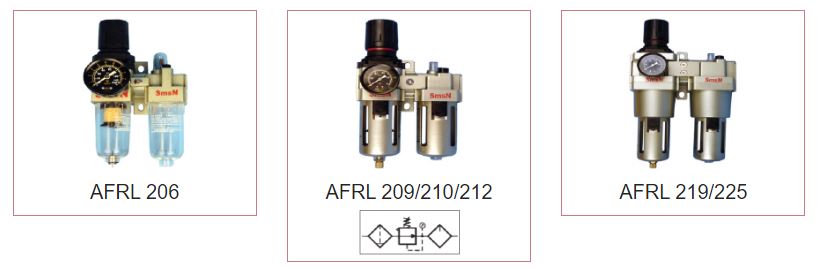

“A” Series Air Filter & Regulator + Lubricator Combination (F&R+L)
| Specification / code |
AFRL 206 |
AFRL 209 |
AFRL 210 |
AFRL 212 |
AFRL 219 |
AFRL 225 |
| Size in Inch. (BSP) |
1/4” |
1/4” |
3/8” |
1/2” |
3/4” |
1” |
| Applicable Medium |
Air |
| Flow L / min. |
500 |
1700 |
3000 |
4000 |
Filtration
(Filter Element) |
40 m (Micron) |
| Filter Cup Size (cc) |
15 |
60 |
90 |
| Lubricator Cup Size (cc) |
25 |
90 |
120 |
| Max. Working Pressure |
0 - 10 kg/cm2 |
| Adjustable Pressure Range |
0.5 to 8.5kg cm2 |
| Applicable Temperature |
5 - 600 |
| Recom. Lubricating Oil |
ISOVG32 or Equivalent |
| Type of Valve |
Relief Valve (Overflow) type |
| Gauge Port Size |
G1 / 8” |
G1 / 4” |
| Body Materia |
Aluminum Alloy Die-Casting |
| Bowl Materia |
Polycarbonate |
| Safety Guard |
No |
Yes |
With Metal Guard (Iron) |
| Drain Function |
Manual Drain |
| FRL Also available with 5m, 10m, 20m Filters. |

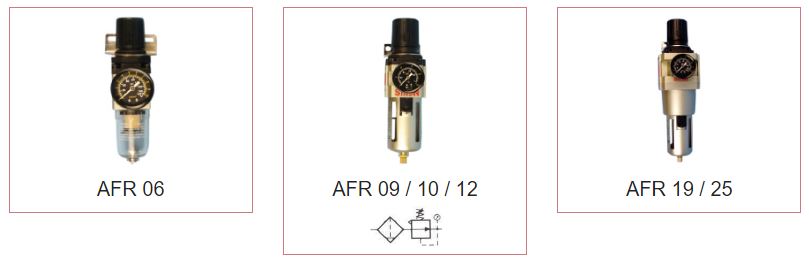

“A” Series Filter & Lubricator (F&R)
| Specification / code |
AFRL 06 |
AFRL 09 |
AFRL 10 |
AFRL 12 |
AFRL 19 |
AFRL 25 |
| Size in Inch. (BSP) |
1/4” |
1/4” |
3/8” |
1/2” |
3/4” |
1” |
| Applicable Medium |
Air |
| Flow L / min. |
500 |
1700 |
3000 |
4000 |
Filtration
(Filter Element) |
40 m (Micron) |
| Filter Cup Size (cc) |
15 |
60 |
90 |
| Max. Working Pressure |
0 - 10 kg/cm2 |
| Adjustable Pressure Range |
0.5 to 8.5kg cm2 |
| Applicable Temperature |
5 - 600 C |
| Recom. Lubricating Oil |
ISOVG32 or Equivalent |
| Type of Valve |
Relief Valve (Overflow) type |
| Gauge Port Size |
G1 / 8” |
G1 / 4” |
| Body Material |
Aluminum Alloy Die-Casting |
| Bowl Material |
Polycarbonate |
| Safety Guard |
No |
With Metal Guard (Iron) |
| Drain Function |
Manual Drain |
| FRL Also available with 5mm, 10mm, 20mm Filt |

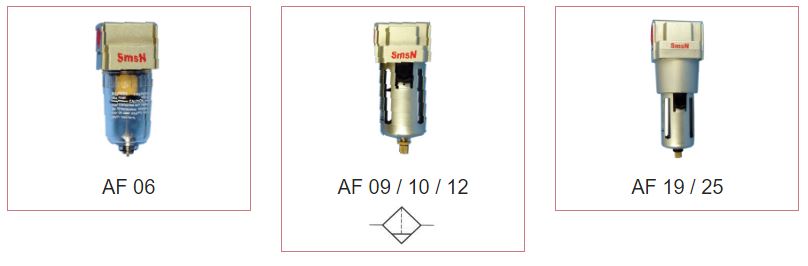

“A” Series Series
| Specification / code |
AF 06 |
AF 09 |
AF 10 |
AF 12 |
AF 19 |
AF 25 |
| Size in Inch. (BSP) |
1/4” |
1/4” |
3/8” |
1/2” |
3/4” |
1” |
| Applicable Medium |
Air |
| Flow L / min. |
800 |
1700 |
5000 |
6300 |
7000 |
Filtration
(Filter Element) |
40 m (Micron) |
| Filter Cup Size (cc) |
15 |
60 |
90 |
| Max. Working Pressure |
0 - 10 kg/cm2 |
| Adjustable Pressure Range |
0.5 to 8.5kg cm2 |
| Applicable Temperature |
5 - 600 C |
| Recom. Lubricating Oil |
ISOVG32 or Equivalent |
| Type of Valve |
Relief Valve (Overflow) type |
| Gauge Port Size |
G1 / 8” |
G1 / 4” |
| Body Material |
Aluminum Alloy Die-Casting |
| Bowl Material |
Polycarbonate |
| Safety Guard |
No |
With Metal Guard (Iron) |
| Drain Function |
Manual Drain |
| FRL Also available with 5m, 10m, 20m Filters. |

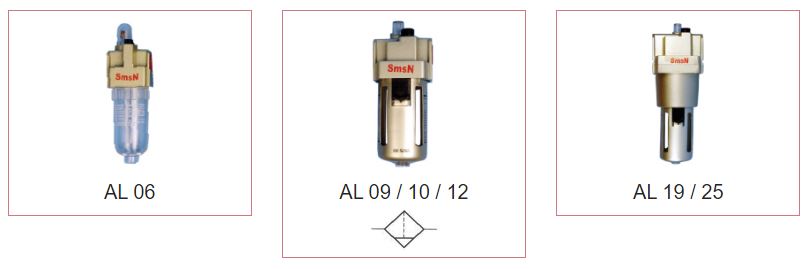

“A” Series Lubricator With Oil Indicator
| Specification / code |
AL 06 |
AL 09 |
AL 10 |
AL 12 |
AL 19 |
AL 25 |
| Size in Inch. (BSP) |
1/4” |
1/4” |
3/8” |
1/2” |
3/4” |
1” |
| Applicable Medium |
Air |
| Flow L / min. |
800 |
1700 |
5000 |
6300 |
7000 |
| Lubricator Cup Size (cc) |
25 |
90 |
120 |
| Max. Working Pressure |
0 - 10 kg/cm2 |
| Adjustable Pressure Range |
0.5 to 8.5kg cm2 |
| Applicable Temperature |
5 - 600 C |
| Recom. Lubricating Oil |
ISOVG32 or Equivalent |
| Body Material |
Aluminum Alloy Die-Casting |
| Bowl Material |
Polycarbonate |
| Safety Guard |
No |
With Metal Guard (Iron) |

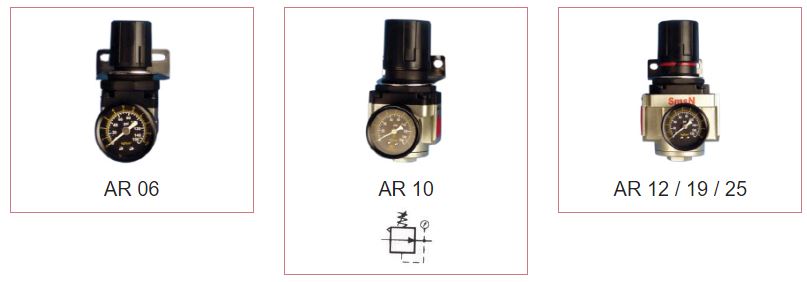

“A” Series Regulator With Gauge And Mounting Bracket
| Specification / code |
AR 06 |
AR 10 |
AR 12 |
AR 19 |
AR 25 |
| Size in Inch. (BSP) |
1/4” |
3/8” |
1/2” |
3/4” |
1” |
| Applicable Medium |
Air |
| Flow L / min. |
500 |
2500 |
6000 |
8000 |
| Max. Working Pressure |
0 - 10 kg/cm2 |
| Adjustable Pressure Range |
0.5 to 8.5kg cm2 |
| Applicable Temperature |
5 - 600 C |
| Type of Valve |
Relief Valve (Overflow) |
| Gauge Port Size |
G1 / 8” |
G1 / 4” |
| Bowl Material |
Aluminium Alloy Die Casting |
| Mounting |
Bracket provided with Regulator for panel mounting |

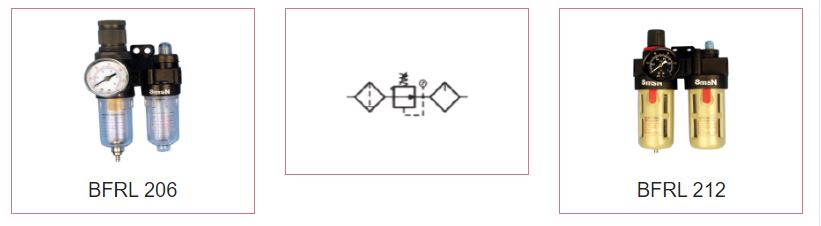

“B” Series Air Filter, Lubricator, Regulator Combination
| Specification / code |
BFRL 206 |
BFRL 212 |
| Size in Inch. (BSP) |
1/4” |
1/2” |
| Applicable Medium |
Air |
| Flow L / min. |
500 |
2200 |
| Filtration (Filter Element) |
40 m (Micron) |
| Filter Cup Size (cc) |
15CC |
60CC |
| Lubricator Cup Size (cc) |
25CC |
90CC |
| Max. Working Pressure |
0 - 10 kg/cm 2 |
| Adjustable Pressure Range |
0.5 to 8.5kg cm 2 |
| Applicable Temperature |
5 - 600C |
| Recom. Lubricating Oil |
ISOVG32 or Equivalent |
| Type of Valve |
Relief Valve (Overflow) |
| Gauge Port Size |
G1 / 4“ |
G1 / 2” |
| Body Material |
Aluminum Alloy Die-Casting |
| Bowl Material |
Polycarbonate |
| Safety Guard |
No |
With Metal Guard (Iron) |
| Drain Function |
Manual Drain |
| FRL Also available with 5m, 10m, 20m Filters. |

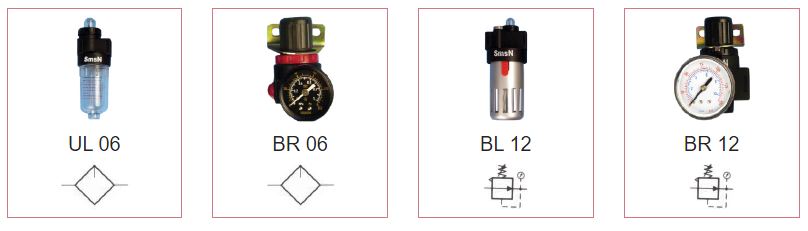

“B” Series Air Filter, Lubricator, Regulator Combination
| Specification / code |
UL 06 |
BR 06 |
BL 12 |
BR 12 |
| Size in Inch |
1/4” |
1/4” |
1/2” |
1/2” |
| Applicable Medium |
Air |
| Flow L / min. |
500 |
2200 |
3000 |
| Lubricator Cup Size (cc) |
25CC |
---- |
90 CC |
---- |
| Max. Working Pressure |
0 - 10 kg/cm 2 |
| Adjustable Pressure Range |
0.5 to 8.5kg cm 2 |
| Applicable Temperature |
5 - 600 C 2 |
| Recom. Lubricating Oil |
ISOVG32 or Equivalent |
| Type of Valve |
Relief Valve (Overflow) type |
| Gauge Port Size |
G1 / 4” |
---- |
G1 / 2” |
---- |
| Body Materia |
Alluminium Alloy Die-Casting |
| Bowl Material |
Polycarbonate |
| Safety Guard |
No |
Yes |
No |
