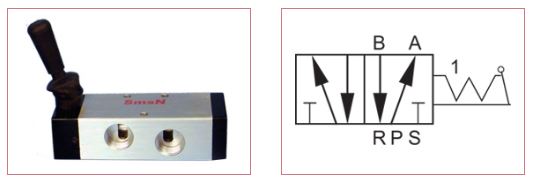

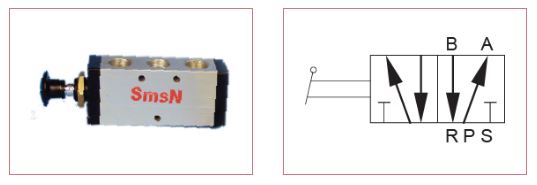

5 Port / 2 Position Hand Valve

Specification / Code	HV 52006	HV 52008	HV 52010	HV 52012
Size (BSP)	1/8”	1/4”	3/8”	1/2”
Working Medium	40 Micron Filtered Air
Motion Pattern	Direct Drive Type
Effective Section Area	14 mm ²	16 mm ²	30 mm ²	50 mm ²
CV	0.78	0.89	1.68	2.79
Inlet & Outlet Port Size	1/8”	1/4”	3/8”	1/2”
Exhaust Port Size	1/8”	1/8”	1/4”	1/2”
Working - pressure kg/cm ²	0 — 8kg/cm ²
Operating Temperature Range	0 — 60^{2^C}

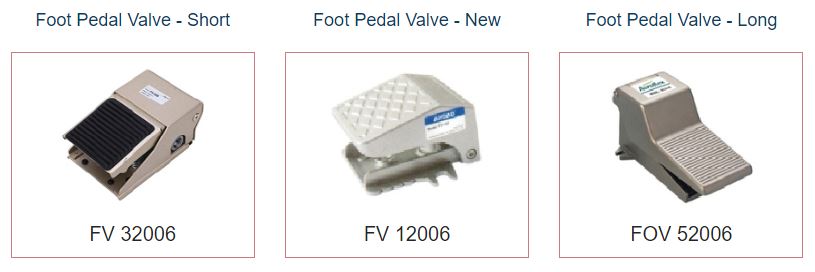

Specification / code	FV 32006	FV 42006	FV 12006	FOV 52006
Size	1/4”	1/4”	1/4”	1/4”
Working Medium	40 Micron Filtered Air
Port / Position	3 Port / 2 Position	4 Port / 2 Position	2 Port / 2 Position	5 Port / 2 Position
Joint Pipe Bore : Inlet & Outlet	1/4”	1/4”	1/4”	1/4”
Exhaust	1/8”	1/8”		1/4”
Motion Pattern	Direct Drive Type
Working - pressure kg/cm ²	0 — 8 kg/cm² C
Operating Temperature Range	0 — 60²C

5 Port / 2 Position Hand Pulling Valve

Specification / code	PV 52006	PV 52008	PV 52012
Size	1/8”	1/4”	1/2”
Working Medium	40 Micron Filtered Air
Effective Section Area	14 mm²	16 mm²	50 mm²
CV	0.78	0.89	2.79
Inlet & Outlet Port Size	1/8”	1/4”	1/2”
Exhaust Port Size	1/8”	1/8”	1/2”
Working - pressure kg/cm ²	0 — 8 kg/cm² C
Operating Temperature Range	0 — 60⁰C

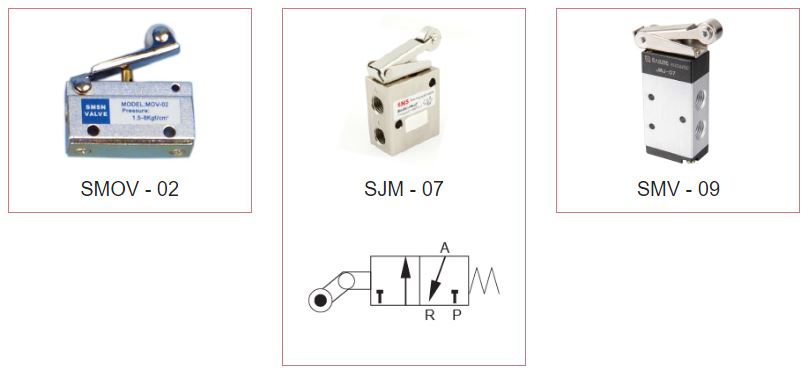

Roller Lever Valve

Specification / Code	SMOV - 02	SJM - 07	SMV - 09
Size	1/8”	1/4”	1/4”
Port / Position	3 Port / 2 Position		5 Port / 2 Position
Application Medium	Compressed Air
Pressure Range	0 — 10 kg/cm ²
Operating Method	Direct Action Type
Application Temperature	-5 — 60⁰ C
Effective Section Area	12mm²	16mm²	16mm²
CV	0.89	0.89	0.89

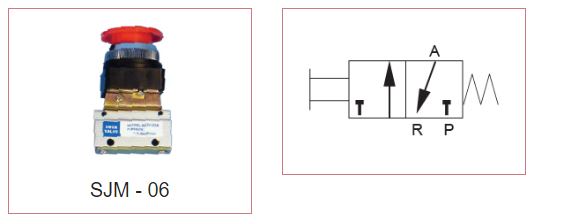

3/2 Knob Lock Palm Button Valve

Specification / Code	SJM - 06
Size	1/4”
Port / Position	3 Port / 2 Position
Application Medium	Compressed Air
Pressure Range	0 — 10 kg/cm²
Operating Method	Direct Action Type
Application Temperature	-5 — 60⁰ C
Effective Section Area	12mm²	16mm²	16mm²
CV	0.67	0.89	0.89

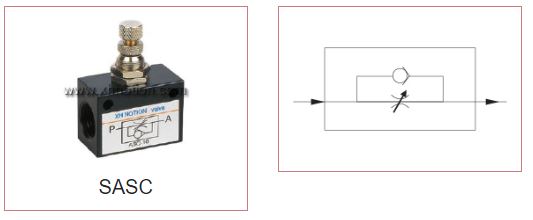

Precision Flow Control Valve

Specification/Code	SASC 01	SASC 02	SASC 03	SASC 04
Joint Pipe Bore	1/8”	1/4”	3/8”	1/2”
Working Medium	Air
Working pressure Range	0 — 8 kg/cm ²
Operating Temperature Range	0 — 60⁰C
Min. Operating Pressure	0.3 kg/cm²
Description	It is a one way flow control valve which can regulate the flow of air in one direction only. It can control forward flow which blocking the reverse flow by the check valve.

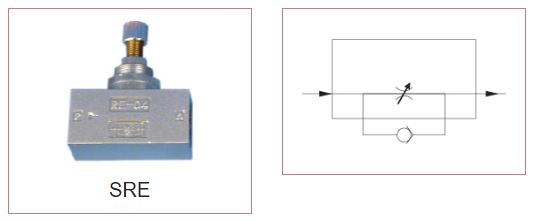

Flow Control Valve

Specification / Code	SRE 01	SRE 02	SRE 03	SRE 04
Joint Pipe Bore	1/8”	1/4”	3/8”	1/2”
Working Medium	Air
Working pressure Range	0 — 9.5 kg/cm²
Operating Temperature Range	0 — 60⁰C
Min. Operating Pressure	0.3 kg/cm²

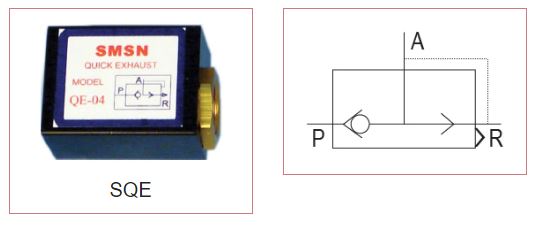

Quick Exhaust Valve

Specification / Code	SQE 01	SQE 02	SQE 03	SQE 04
Joint Pipe Bore	1/8”	1/4”	3/8”	1/2”
Effective Section Area	16MM²	27.5MM²	28MM²	71MM²
Working Medium	Air
Working pressure Range	0 — 10 kg/cm²
Operating Temperature Range	0 — 60⁰C
Description	It is one way directional control element & can discharge the compressed air easily into the system.
Apply	It is usually connected between the air cylinder & the flow control valve & makes the air in the cylinder escape directly through it, instead of control valve. e.g. : Pneumatic Pressusre.

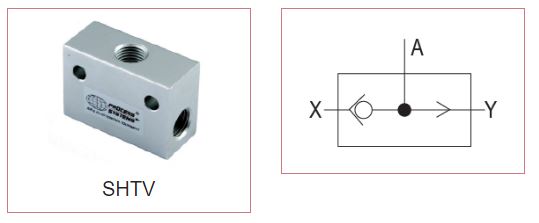

Shuttle Valve

Specification / Code	SHTV 01	SHTV 02	SHTV 03	SHTV 04
Joint Pipe Bore	1/8”	1/4”	3/8”	1/2”
Effective Section Area	7.5 MM²	21 MM²	40 MM²	60 MM²
Working Medium	Air
Working pressure Range	0 — 10 kg/cm²
Operating Temperature Range	0 — 60⁰C
Min. Operating Pressure	0.5 kg/cm²

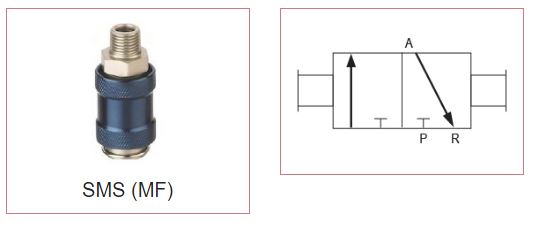

Hand Slide (Shut Off Valve) Male X Female

Specification / Code	SMS 22MF	SMS 33MF	SMS 44MF
Size	1/4”	3/8”	1/2”
Working Medium	Air
Working pressure Range	0 — 10 kg/cm²
Operating Temperature Range	-5 - 60⁰C

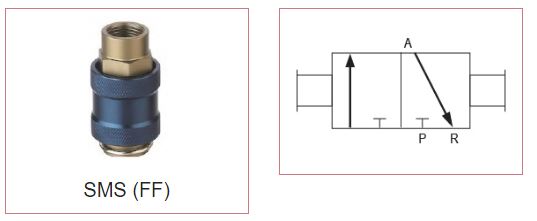

Hand Slide (Shut Off Valve) Female X Female

Specification / Code	SMS 22FF	SMS 33FF	SMS 44FF
Size	1/4”	3/8”	1/2”
Working Medium	Air
Working pressure Range	0 — 10 kg/cm²
Operating Temperature Range	-5 - 60⁰C

Check / Nrv Valve ( Brass Body )

Specification / Code	SCV 01	SCV 02	SCV 03	SCV 04
Joint Pipe Bore	1/8”	1/4”	3/8”	1/2”
Working Medium	Air
Working pressure Range	0 — 9.5 kg/cm²
Operating Temperature Range	0 — 60⁰C
Min. Operating Pressure	0.3 kg/cm²

Check / Nrv Valve ( Aluminum Body )

Specification / Code	NRV 01	NRV 02	NRV 03	NRV 04
Joint Pipe Bore	1/8”	1/4”	3/8”	1/2”
Working Medium	Air
Working Pressure Range	0 — 9.5 kg/cm²
Operating Temperature Range	0 — 60⁰C
Min. Operating Pressure	0.3 kg/cm²

Vacuum Generator

Specification / Code	SCV 10LS	SCV 15LS	SCV 20LS	SCV 25LS
Vacuum Port Size (A)	1/8”	1/4”	3/8”	1/2”
Air supply Port Size (B)	1/8”	1/4”	1/4”
Silencer fitting size ©	1/8”	1/4”	1/2”
Air Consumption (L/min)	44	100	180
Exhaust (L/min)	27	63	110
Working Medium	Air
Working pressure Range	10 — 16 kg/cm²
Operating Temperature Range	0 — 60⁰C

Silencer for Vaccum Generator

Specification / Code	SPSU - 01	SPSU - 02	SPSU - 03	SPSU - 04
Size	1/8”	1/4”	3/8”	1/2”

Quick Exhaust Valve Festo Type

Specification / Code	SBQE 01	SBQE 02	SBQE 03	SBQE 04
Joint Pipe Bore	1/8”	1/4”	3/8”	1/2”
Working Medium
Working pressure Range	0 — 9.5 kg/cm²
Operating Temperature Range	0 — 60 ⁰C
Min. Operating Pressure	0.3 kg/cm ²

Blanking Plug Dead Plug Allenkey Slot Chrome Plated

Specification / Code	SKTD 01	SKTD 02	SKTD 03	SKTD 04
Joint Pipe Bore	1/8”	1/4”	3/8”	1/2”
Working Medium
Working pressure Range	0 — 9.5 kg/cm²
Operating Temperature Range	0 — 60 ⁰C
Min. Operating Pressure	0.3 kg/cm ²

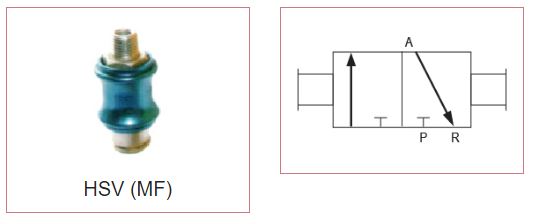

Hand Slide Valve - Male X Female

Specification / Code	HSV 06MF	HSV 08MF	HSV 10MF	HSV 15MF
Size	1/8”	3/8”	3/8”	1/2”
Working Medium	Air
Working pressure Range	0 — 10 kg/cm²
Operating Temperature Range	-5 — 60⁰C

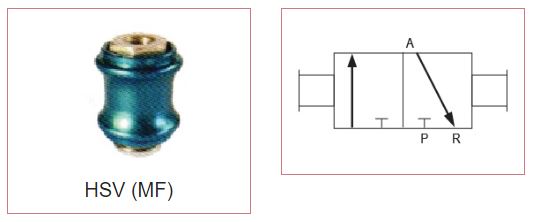

Hand Slide Valve - Female X Female

Specification / Code	HSV 06FF	HSV 08FF	HSV 10FF	HSV 15FF
Size	1/8”	3/8”	3/8”	1/2”
Working Medium	Air
Working pressure Range	0 — 10 kg/cm²
Operating Temperature Range	-5 — 60⁰C
