Pressure Guage

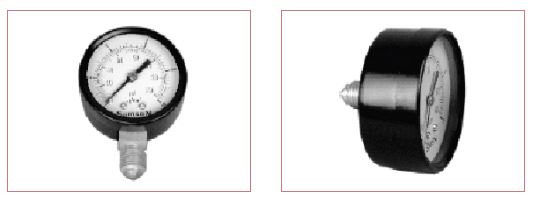

40 / 50mm SMSN M.S / S.S. Pressure Guage

Dial Size	40MM	40MM	50MM	50MM	50MM	50MM
Case / Tube	M.S	M.S	M.S	M.S	M.S	M.S
Conn. & Mov.	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
Type	DRY	DRY	DRY	DRY	DRY	DRY
Thread (BSP)	1/8”	1/8”	1/8”	1/4”	1/8”	1/4”
Connection	BACK	BOTTOM	BACK	BACK	BOTTOM	BOTTOM
Accuracy	2.5%	2.5%"	2.5%"	2.5%"	2.5%"	2.5%"
(Kg/Cm² ) PSI	Code	Code	Code	Code	Code	Code
0 - 07 100	40B1007D	40T1007D	50B1007D	50B2007D	50T1007D	50T2007D
0 - 10 140	40B101OD	40T101OD	50B1010D	50B2010D	50T1010D	50T2010D
0 - 14 200	40B1014D	40T1014D	50B1014D	50B2014D	50T1014D	50T2014D
